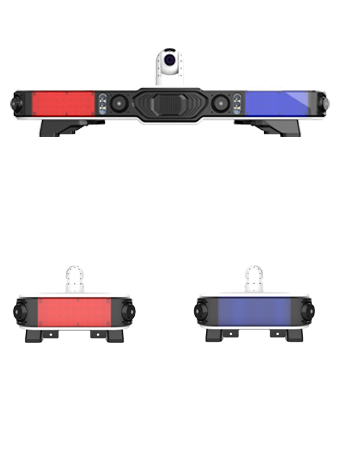

Traffic Light Bar

  1. Home
  2. Others
  3. Traffic Light Bar

Key Features

  • Integrated video forensics system, 360 degree video capture, high-definition close-up gimbal tracking;
  • Integrated intelligent capture and collection system, built-in AI edge server, structured analysis of people and vehicles;
  • Supports 4G/5G wireless image transmission; Integrated positioning and speed measurement system, built-in high-precision Beidou positioning module;
  • Integrate standard police standard lighting fixtures, alarms, intercom speakers, and warning display screens;
  • Professional appearance design, dignified and dignified; The structure is highly integrated, the wiring is neat, and it is easy to install and maintain.

Certificate

CE certificate ISO 9001 certificate ISO 13485 certificate ISO 14001 certificate

Specification


Size
Embedded gimbal: approximately 1220 * 420 * 370mm (including tripod)
without gimbal: approximately 1220 * 420 * 175mm (including tripod)
Weight
31kg
Input Power Supply
Vehicle mounted DC12V, power consumption: maximum power consumption of 240W
Operating Temperature
-40°C to 70°C
Accessory
Intercom shouting microphone, touch screen display
Edge computing host
CPU
2.4G x 8 cores, Cortex: A76 x 4 + A55 x 4
Memory
4GB RAM + 64GB FLASH
Storage
1TB capacity, 2.5-inch SSD/HDD storage
Network
Supports 4/5G, WIFI, and GPS
Sensor
Supports 6-axis acceleration sensors
Power Supply
DC12V 3A， Power consumption: standby power consumption<3W, typical operating power consumption<15W
HD Camera
Image Device
1/1.8" 4 million line by line scanning CMOS
Lens
8mm M12 lens, fixed aperture F1.6; 16mm (6 pieces), 25mm (2 pieces)
Video Compression Standard
H. 264 (H.265 optional)
Video Encoding Rate
512Kbps-15Mbps， Default 10Mbps, supports fixed bit rate CBR or dynamic bit rate VBR
Resolution
Video: 2592 * 1520 (4MP)/25fps compatible with 3MP/1080P/720P Default bitrate of 10Mbps;
Live streaming: 1080P, 720P, D1, VGA CIF@25fps (Default VGA, bitrate 1Mbps);
Online streaming: dynamic (adaptive)
Power supply
DC12V(PON)， Whole machine power consumption: less than 3W
Protection grade
IP67
Size
113 x 70 x 68mm
PTZ Camera
Image Device
1/2.8" 2 million progressive scan CMOS
Focal Length
5.5~150mm， 26 times optical zoom, zoom speed: 3.5 seconds
Power Supply
DC12V 2A
Rotation range
Horizontal range: 360° continuous rotation
Vertical range: -25°-90°
Size
Φ147 x 208mm
Alarm Lamp
LED bead lifespan
>50000 hours, Mean time between failures: 50000 hours (MTBF);
Flashing characteristics of police lights
Luminous frequency (f): 1.67Hz; Lighting time (t): 0.16/f (s); Extinguishing time 260ms, pulse interval 65ms
Police light lampshade
Left red, right blue
Siren
Rated output power
100W±10W, rated operational voltage: 12V
Built in alarm sound pressure
106dB（A）
Built in alarm for harmonic distortion
At a total harmonic of 1000Hz, the distortion is 7%, Built in alarm conversion efficiency: 83%
LED text screen
Size
380 x 76mm, Scrollable display of 5 words
Luminous dot matrix spacing
Spacing ≤ P6
Communication method
Scanning method 1/16, RS-485 communication control, control protocol is encrypted police specific protocol
Text switching operation method
Support operation through the touch screen
